Products Catalog:Manufactuer of Quality Stainless Steel Wire Mesh

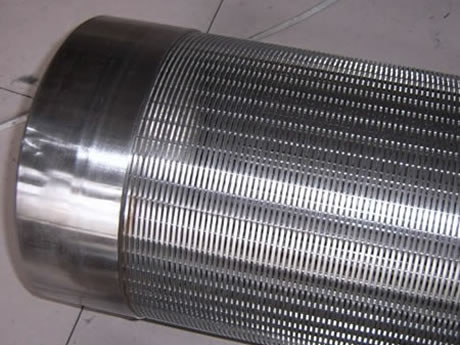

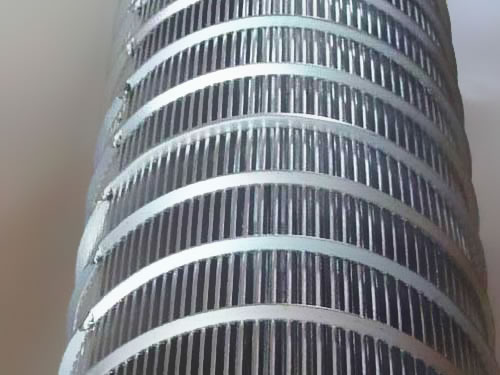

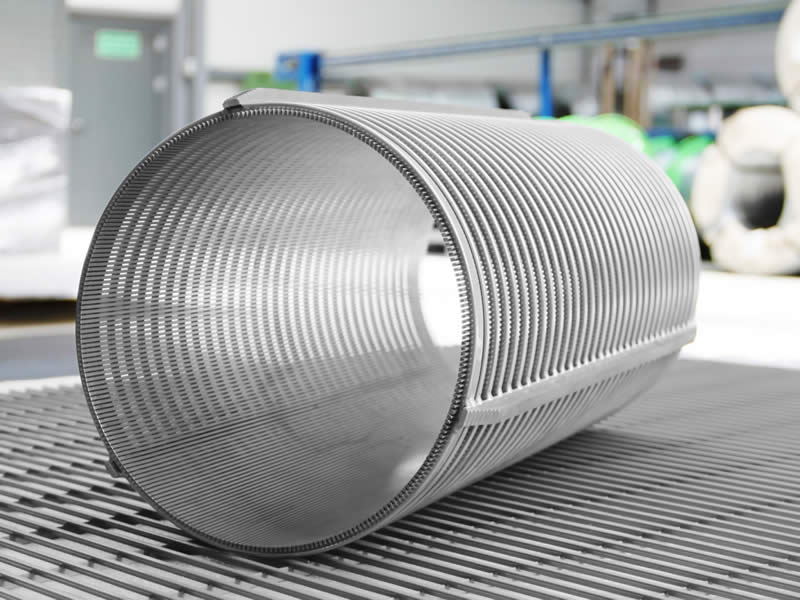

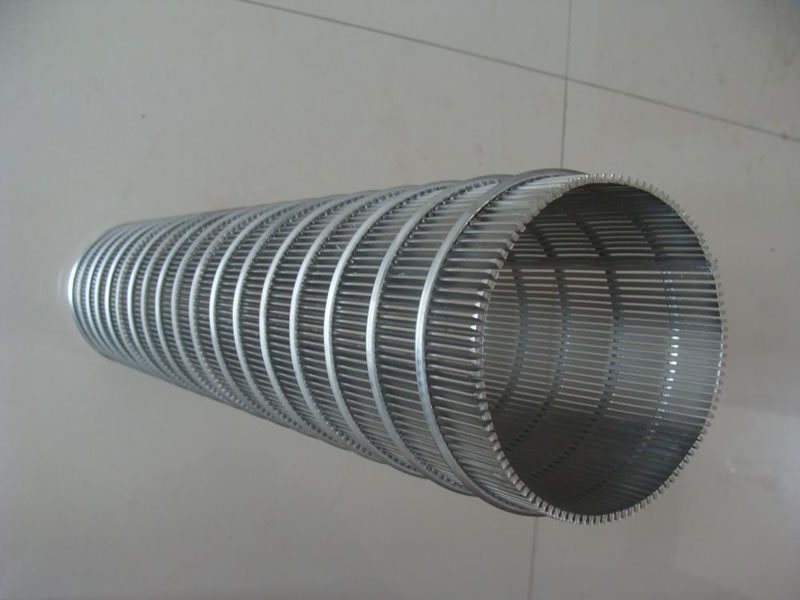

Wire Wrapped Screen Pipe:


Wire wrapped screen pipe, also known as Johnson screen, winding filter element, is welded by stainless steel wedge wire and support strip. The filtration accuracy is 25-800μm, the outer diameter is 19-914mm, and the continuous length can reach 6 meters.

Materials: Carbon steel, galvanized and stainless steel 302, 304, 304L, 316, 316L, etc.


1. A continuous slot opening which significantly increases the available open area, thus providing grater access to the water bearing zone.

2. “V”shaped profile wire which avoids clogging and ensures an uninterrupted flow. Uniform and efficient well development due to the continuous slot opening.

3. Ladder-like wire welded screens have a strong structure and high open area,as well as accurate slot dimension, easy backwashing, last long, safety reliability.

Usage: It can use with the deep well pump,dive the water pump, also may use in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water water desalination treatment, running water treatment, water softening treatment, the petroleum industry. Used in coal, mine, water etc profession.
